Description

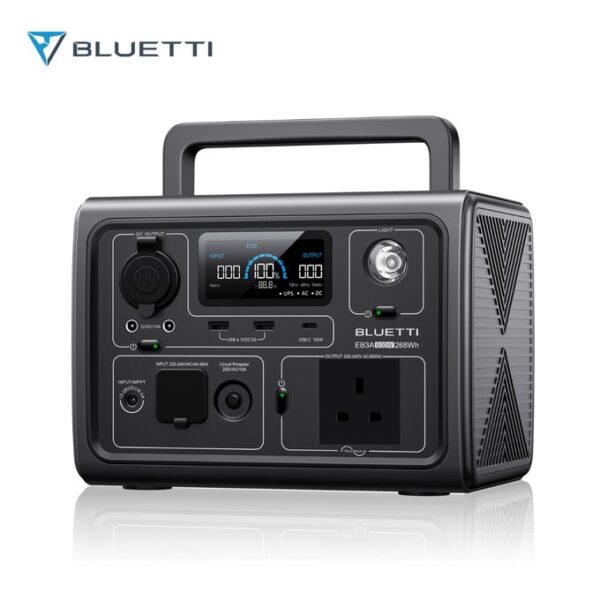

EB3A

• Capacity: 268.8Wh
• Type: LiFePO4 (Lithium Iron Phosphate)
• Life Cycles: 2,500+ Cycles to 80% Original Capacity
• Shelf-life: Recharge to 80% Every 3-6 Months
• Management System: MPPT Controller, BMS, etc.

INPUT

• AC Charging Cable (Standard Mode): 268W Max.
• AC Charging Cable (Turbo Mode): 350W Max.
• Solar Input: 200W Max, VOC 12-28VDC/ 8.5A
• Car Input: 12/24V from Cigarette Port
• Maximum Input: 430W, with AC and Solar Input Simultaneously
• Solar panels recommendation:

https://www.jumia.com.ng/bluetti-pv200-200w-solar-panel-269923513.html
https://www.jumia.com.ng/bluetti-pv120-120w-solar-panel-269860387.html

RECHARGE TIMES

• AC Charging Cable (Turbo Mode 350W): ≈1.3-1.8 Hours
• AC Charging Cable (Standard Mode 268W): ≈1.5-2.0 Hours
• Solar (200W): ≈1.8-2.0 Hours (With prime sunshine, ideal orientation and low temperature)
• 12V/24V Car Outlet (100W/200W): ≈3.2-3.7 or 1.9-2.4 Hours
• AC + Solar (430W): ≈1.2~1.7 Hours (With prime sunshine, ideal orientation and low temperature)
• Dual AC (430W): ≈1.2~1.7 Hours (With optional BLUETTTI T200 Adapter)

GENERAL

• Pass-through Charging: Yes
• Weight: 10.14lbs/4.6kg
• Dimensions (LxWxD): 10.04*7.09*7.20in/255*180*183mm
• Operating Temperature: -4-104℉ (-20-40℃)
• Storage Temperature: 32-104°F (0-40°C)
• Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65


Package Included:
1 * BLUETTI EB3A Portable Power Station
1 * AC Charging Cable
1 * Solar Charging Cable
1 * User Manual

Lighting An African Family Program:

https://www.bluettipower.com/pages/laaf
